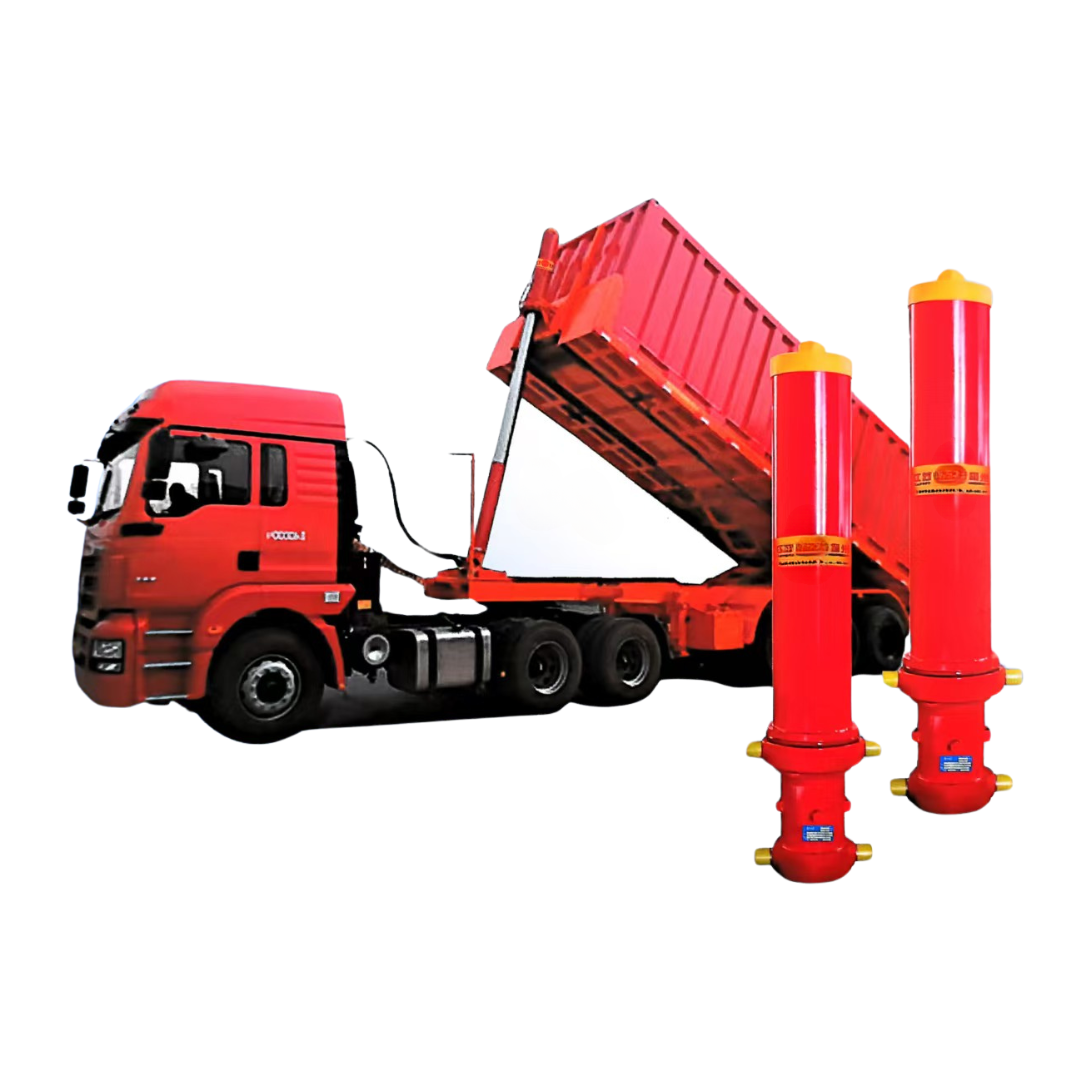

Truck Front-mounted Hydraulic Cylinders: Core Power Components for Engineering Transportation​

Views : 83
Update time : 2025-06-23 17:45:00
In the field of engineering transportation, front-mounted hydraulic cylinders are core components determining the operational capability of trucks. The following provides a professional analysis from the aspects of structure, principle, application, advantages, and maintenance.

I. Structural Analysis
Truck front-mounted hydraulic cylinders mainly consist of cylinder barrels, pistons, piston rods, seals, and guide sleeves:
  • Cylinder Barrel: Made of 27SiMn high-strength seamless steel tubes, with strong compressive and bending resistance
  • Piston and Piston Rod: Transmit linear motion to achieve the lifting and lowering of the carriage
  • Seals: Adopt combined sealing structures such as German Dongshan KI310, preventing leakage and the intrusion of impurities
  • Guide Sleeve: Installed in the inner hole of the cylinder head to provide precise guidance for the movement of the piston rod
II. Working Principle
Based on Pascal's law, the hydraulic pump pressurizes the hydraulic oil and delivers it to the hydraulic cylinder:
  • High-pressure oil pushes the piston to drive the piston rod to extend, realizing the lifting of the carriage
  • The reversing valve changes the flow direction of the hydraulic oil, the hydraulic oil returns, and the carriage descends under the action of gravity
III. Application Scenarios

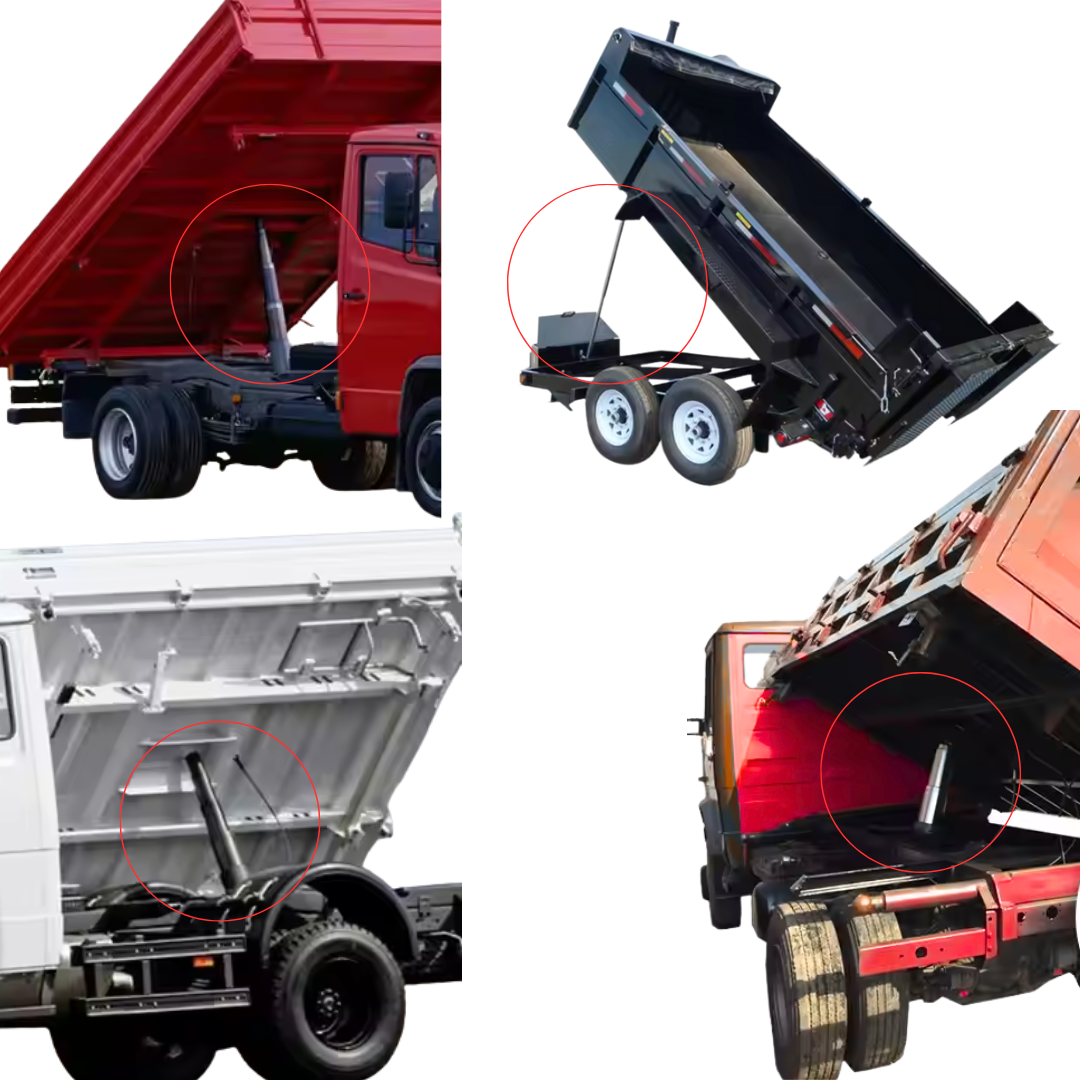

1. In the Field of Dump Trucks
Widely used in various dump trucks such as front four rear eight dump trucks and rear-tipping semi-trailer dump trucks, especially in urban muck trucks:
  • Smaller lifting force under the same load, reducing the impact on the vehicle structure
  • Large lateral stiffness of the carriage, making the lifting process stable and safe
2. In Engineering Work Vehicles
In multi-purpose construction site vehicles, the loading platform can be lifted to facilitate the loading and unloading of heavy building materials, adapting to heavy load conditions.
IV. Performance Advantages
  1. Excellent Lifting Performance: Small lifting force, stable process, large lateral stiffness of the carriage, and some adopt a single large cylinder design to improve efficiency
  1. Durable Structure: Multi-stage sleeve design, surface quenching and chrome plating treatment, with strong bending resistance, rust prevention, and wear resistance, adapting to harsh environments
  1. Strong Adaptability: Various connection methods such as double hinge shafts, earring hinge shafts, etc., suitable for different vehicle models
  1. Reasonable Layout: The hydraulic oil tank is placed behind the cab and in front of the carriage, shortening the oil pipe, reducing pressure loss, and saving space
V. Maintenance Points
  1. Regularly check the seals and replace the aging and damaged parts in time
  1. Keep the hydraulic oil clean, and replace and filter it regularly
  1. Check the surface of the piston rod, repair or replace the damaged parts, and apply anti-rust oil
  1. Pay attention to the working temperature, and check for blockages, heat dissipation, etc., when it is abnormal
Front-mounted hydraulic cylinders provide a guarantee for the efficient operation of trucks with their professional design and reliable performance, and will continue to innovate and upgrade in the future.
